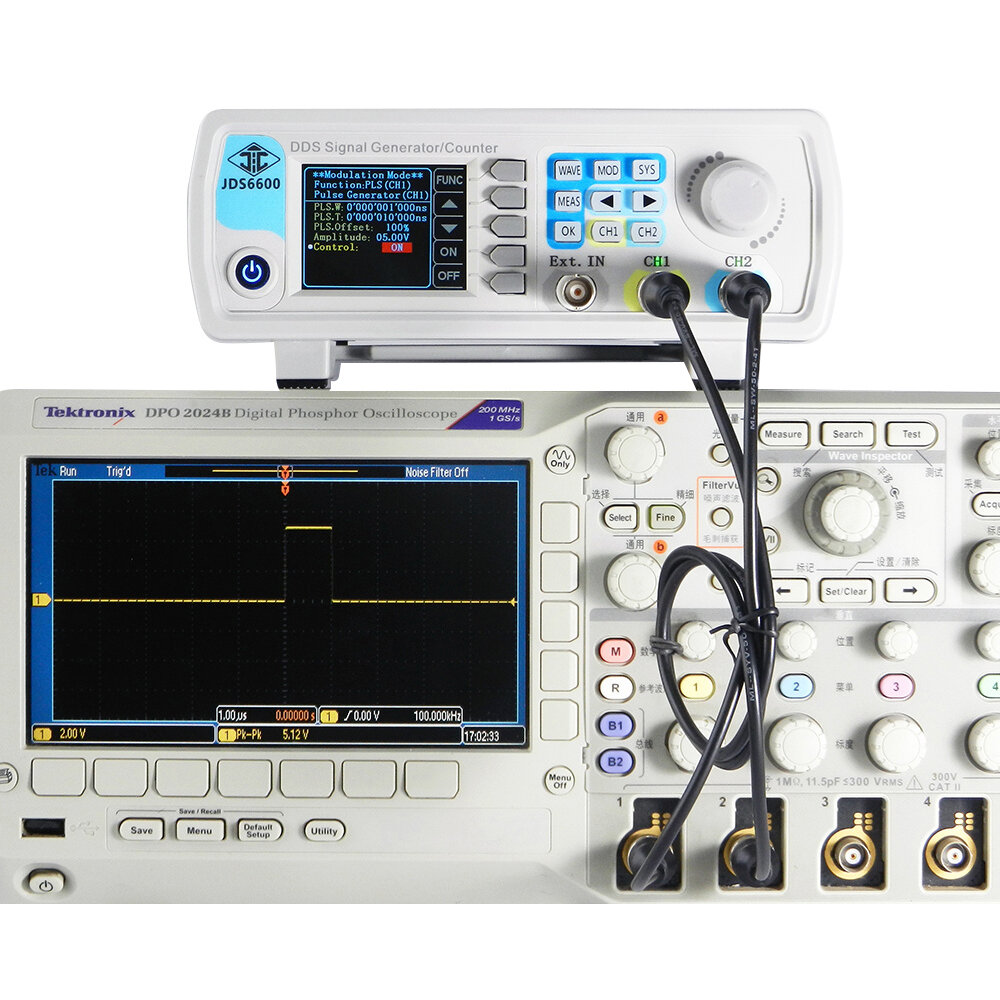

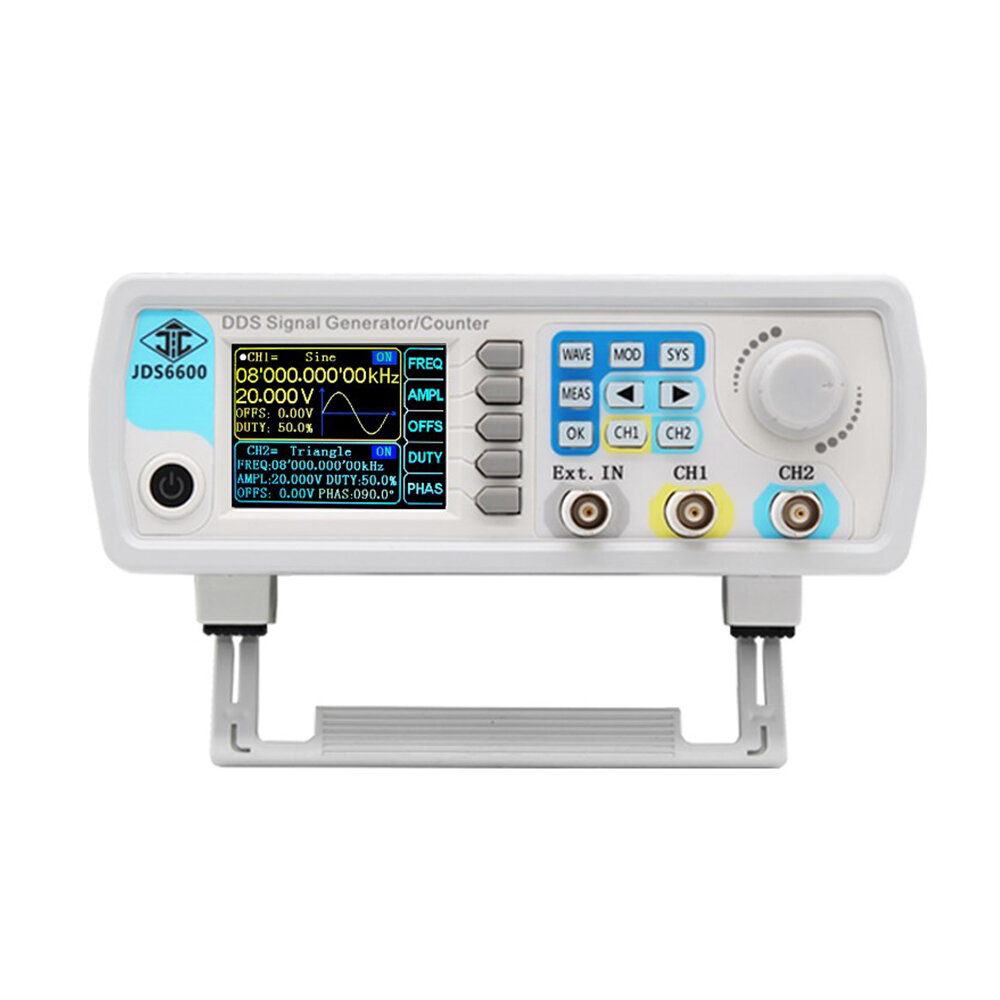

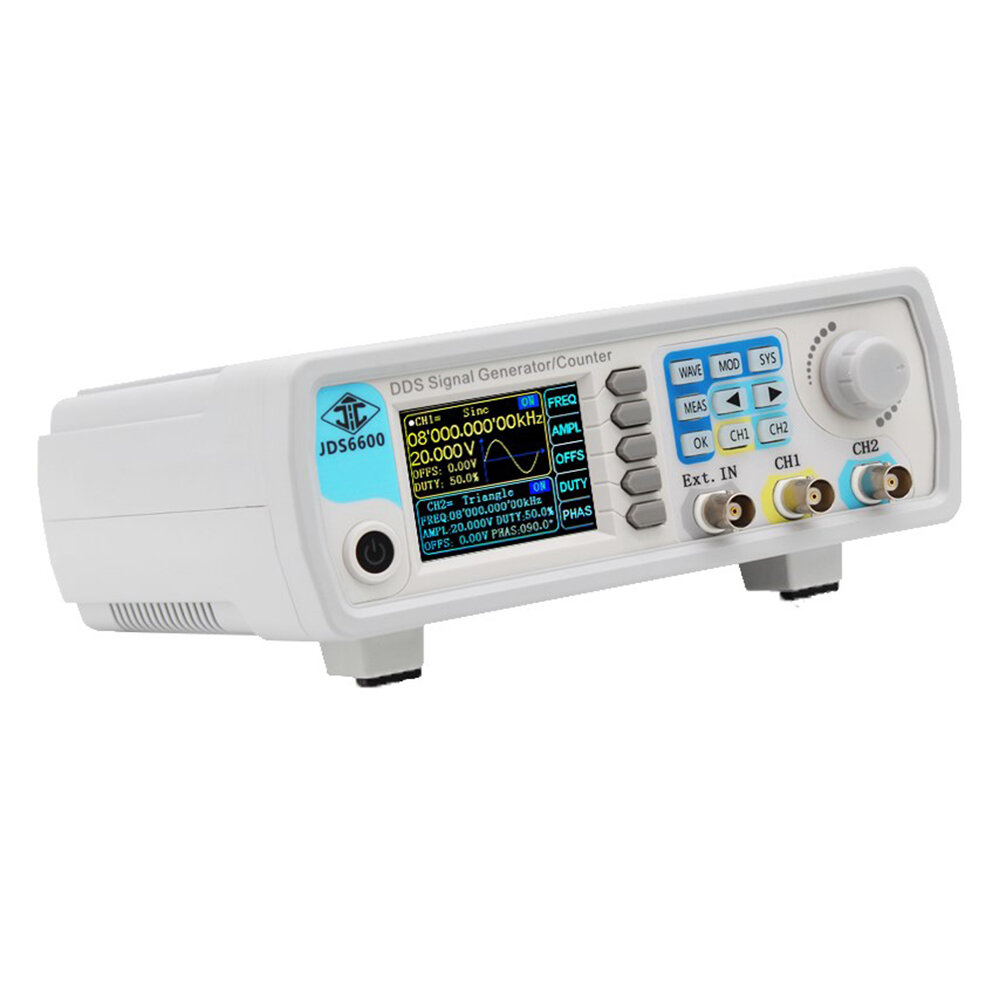

JDS6600 series DDS signal generator can generate sine wave, square waves, triangle wave, pulse wave, and arbitrary wave etc. The frequency will be up to 40MHz. And it has duty-cycle correction, amplitude modulation function and frequency sweep function, etc. It can show output signal, amplitude and frequency in the same time. This series has amplitude frequency characteristics, and the appearance is very delicate and beautiful. It can be applied in factories, schools, research institutes and laboratories. There are 5 models, JDS6600-60M, JDS6600-50M, JDS6600-40M, JDS6600-30M and JDS6600-15M. The main difference is the max output frequency of sin wave.

Manual is here!
Protocol: Click here!

Frequency Characteristics
	JDS6600-15M		JDS6600-30M			JDS6600-40M	JDS6600-50M		JDS6600-60M
Sine frequency range	0~15MHz		0~30MHz			0~40MHz	0~50MHz		0~60MHz
Square frequency range	0~15MHz		0~15MHz			0~15MHz	0~15MHz		0~15MHz
Triangle frequency range
Pulse frequency range	0~6MHz		0~6MHz			0~6MHz	0~6MHz		0~6MHz
CMOS/TTL digital frequency range
Arbitrary wave frequency range
Square rise time	u226430nS		u226425nS			u226420nS	u226420nS		u226420nS
Mininum Frequency resolution	0.01u00b5Hz(0.00000001Hz)
Frequency accuracy	±20ppm
Frequency stability	±1ppm/3h
Waveform Characteristics
Waveform	Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.
Waveform length	2048 points
Waveform sampling rate	JDS6600-15M		JDS6600-30M			JDS6600-40M		JDS6600-50M		JDS6600-60M
	200MSa/s						266MSa/s
Waveform vertical resolution	12 bits
Sine	Harmonic suppression				≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
	Total harmonic distortion				<0.8%(20Hz~20kHz,0dBm)
Square and Pulse	Overshoot (Square)				u22645%
	Duty-cycle range(Pulse)				0.1%~99.9%
Ramp wave	Linearity				≥98%(0.01Hz~10kHz)
Output Characteristics
Amplitude range	JDS6600-15M		JDS6600-30M			JDS6600-40M		JDS6600-50M		JDS6600-60M
	u226410MHz:2mVpp~20Vpp u226415MHZ:2mVpp~10Vpp		u226410MHz:2mVpp~20Vpp u226430MHZ:2mVpp~10Vpp			u226410MHz:2mVpp~20Vpp u226430MHZ:2mVpp~10Vpp u226460MHZ:2mVpp~5Vpp
Amplitude resolution	1mV
Amplitude stability	±0.5%/5 h
Amplitude flatness	±5%(<10MHz); ±10%(>10MHz)
Waveform Output
Output impedance	50u03a9±10%(typical)
Protection	All the signal output termianl can be shorted within 60s
DC counteract
counteract adjusting range	Output Amplitude >2V				0.2V		0
	-9.99V~9.99V				-2.5V~2.5V		-0.25V~0.25V
counteract resolution	0.01 V
Phase characteristics
Phase adjusting range		0~359.9°
Phase resolution		0.1°
TTL/COMS Output
Low level		<0.3V
High level		1V~10V
Level rise/fall time		u226420ns

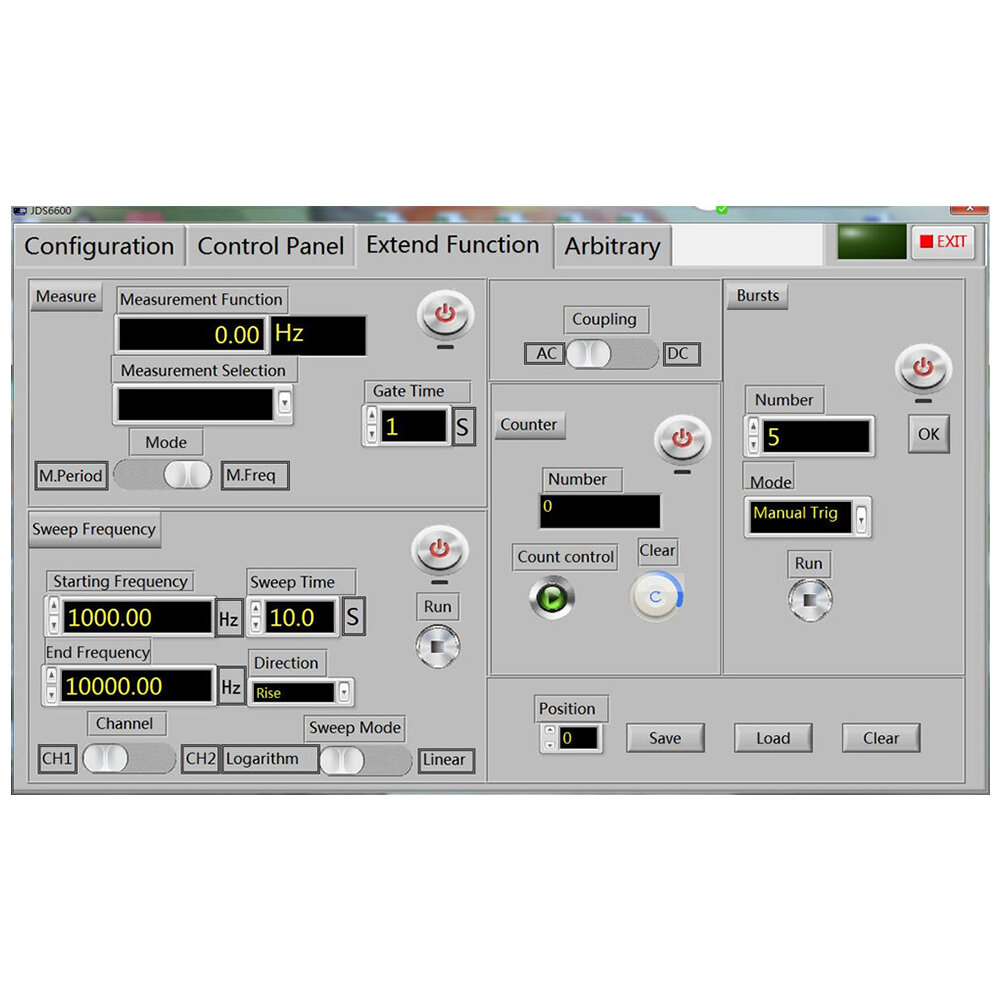

External Measurement Function
Frequency meter function		Frequency measurement range			1Hz~100MHz
		Measurement accuracy			Gate time continuously adjusted between0.01s~10s
Counter function		Counting region			0-4294967295
		Coupled mode			2kinds Coupling modes, DC and AC
		Control mode			Manual operation
Input signal voltage range		2Vpp~20Vpp
Pulse width measurement		0.01us (resolution), 20s (MAX measuring time)
Period measurement		0.01us (resolution), 20s (MAX measuring time)
Sweep Function
Sweep channel		CH1 or CH2
Sweep type		linear sweep, log sweep
Sweep time		0.1s~999.9s
Setting range		User settings
Sweep direction		Forward, Backward and Roundtrip
Burst function
Number of pulses		1-1048575
Burst mode		Manual Trig, CH2 Trig, Ext.Tring(AC), Ext.Tring(DC)
Technical parameters
Display		Display type		2.4 inch TFT color LCD
Storage and loading		Quantity		100 groups
		Location		00 to 99(Power on will load the position 00)

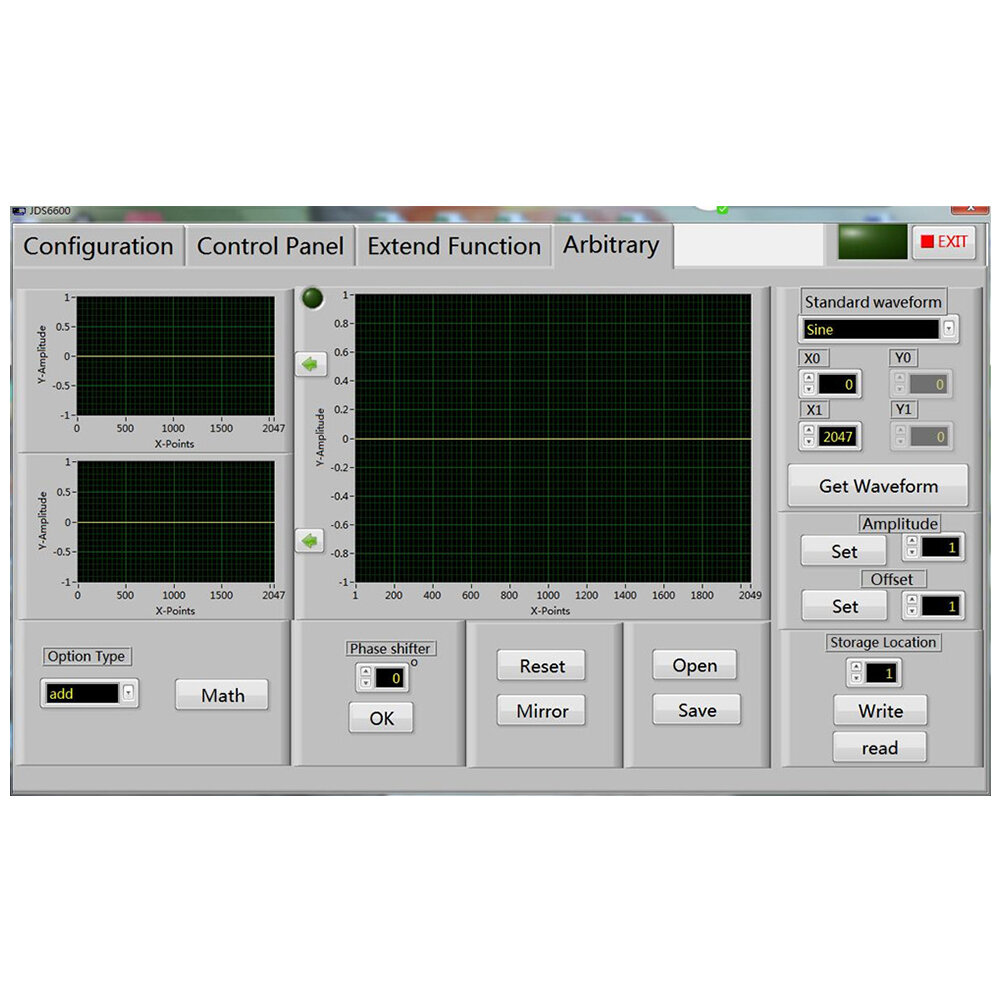

Arbitrary wave		quantity		1 to 60, totally 60 groups(default set 15 groups)
Interface		Interface mode		USB to serial interface

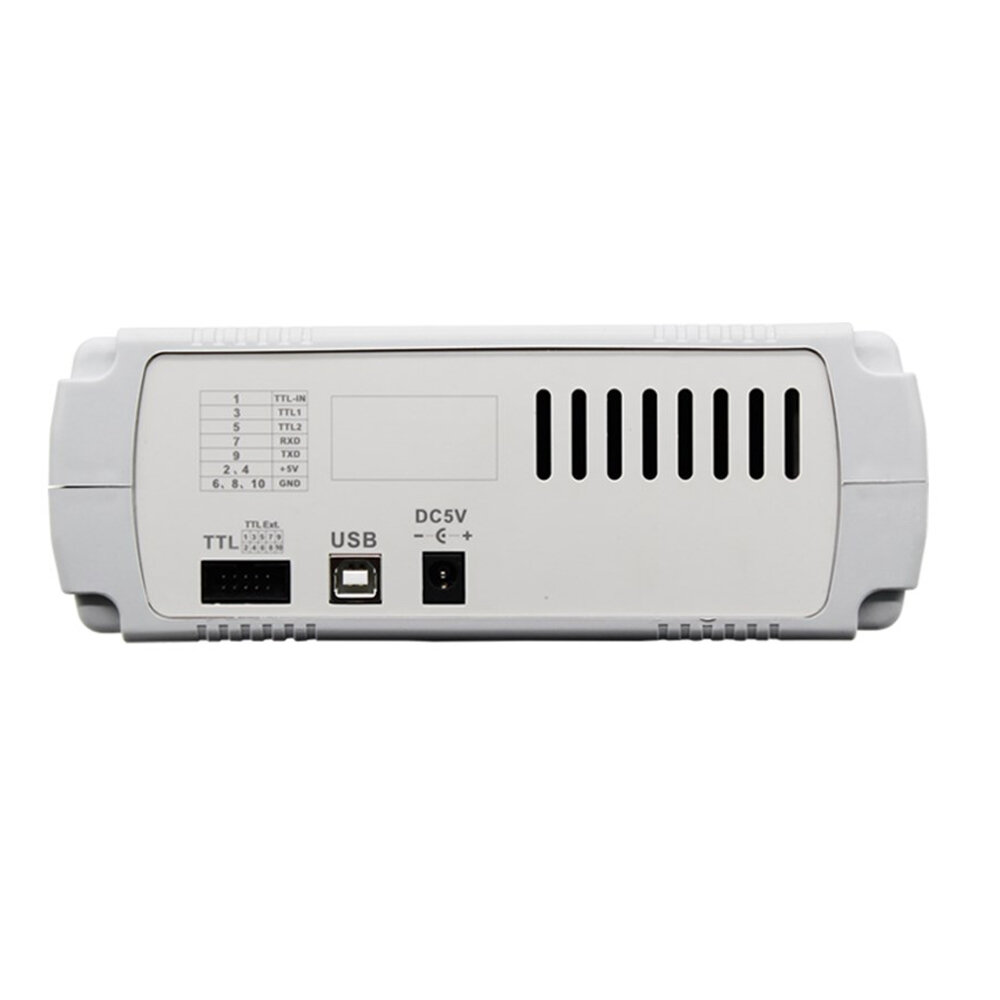

		Extension interface -		There is serial interface of TTL level mode to be convenient for user development.
		Communication speed		115200bps
		communication protocol		Open protocol
Power supply		Voltage range		DC5V±0.5V
Manufacturing process		Surface-mount technology, FPGA design, high reliability, long service life
Buzzer		User can set ON or OFF by procedure
Operating characteristics		Full button operation, knob continuous adjustment
Environmental conditions		Temperature: 0~40 ^oCHumidity:<80%
